700C Frame
700C Frame
Carbon Fiber
TA12
- Model No. VT26E70B009
- Materail: Carbon Fiber
- Tire Size: 700 x 45C
- Brake Type. Flat Mount / Disc Brake
- Drive Train: Di2 / Mechanical (Full Integrated)
- B.B. BB386
- Front Hub: O.L.D. 100mm /Thru-Axle 12 Type
- Rear Hub: O.L.D. 142mm / Thru-Axle 12 Type
- Rear Hub Motor / Inner battery
- compatible SRAM UDH system /FSA fully hidden cable routing system
- Seat Post: 31.6mm
- Head Tube: Upper 1-1/2″; Lower 1-1/2″
700C Frame
Alloy
TA12
- Model No. VT26E70B008
- Materail: Alloy 6061-T6
- Tire Size: 700 x 45C
- Brake Type. Flat Mount / Disc Brake
- Drive Train: Di2 / Mechanical (Full Integrated)
- B.B. BB386
- Front Hub: O.L.D. 100mm /Thru-Axle 12 Type
- Rear Hub: O.L.D. 142mm / Thru-Axle 12 Type
- Rear Hub Motor / Inner battery
- Compatible SRAM UDH system / FSA Fully hidden cable routing system
- Seat Post: 31.6mm
- Headset: Upper 1-1/2″; Lower 1-1/2″

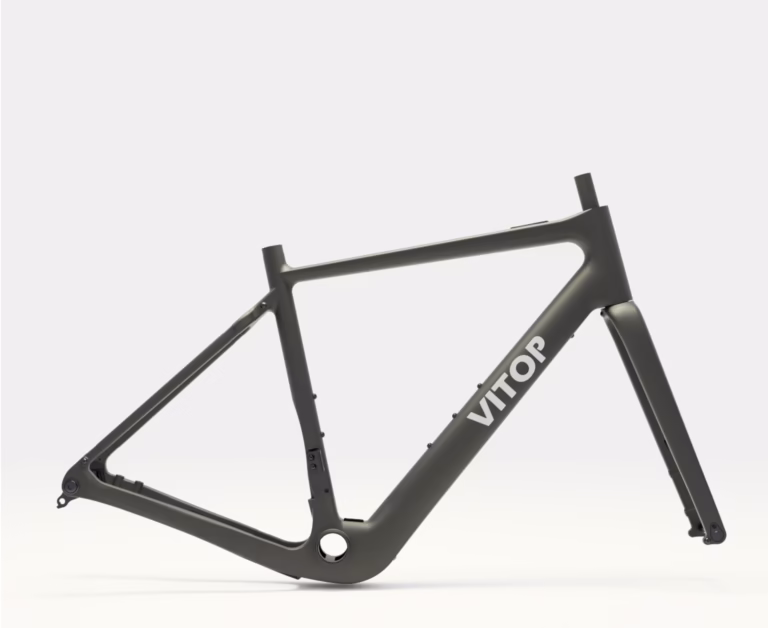

700C Frame & Fork.
Carbon Fiber
- Model No. VT24E70B009
- Materail: Carbon Fiber
- Tire Size: 700 x 40C / 650B x 53
- Brake Type. Flat Mount / Disc Brake
- Drive Train: Di2 / Mechanical (Full Integrated)
- B.B. BB386
- Front Hub: O.L.D. 100mm /Thru-Axle 12 Type
- Rear Hub: O.L.D. 135mm / QR Type
- Rear Hub Motor / Inner battery /compatible FSA E-system
- Seat Post: 31.6mm
- Head Tube: Upper 1-1/2″; Lower 1-1/2″, Compatible FSA ACR System
